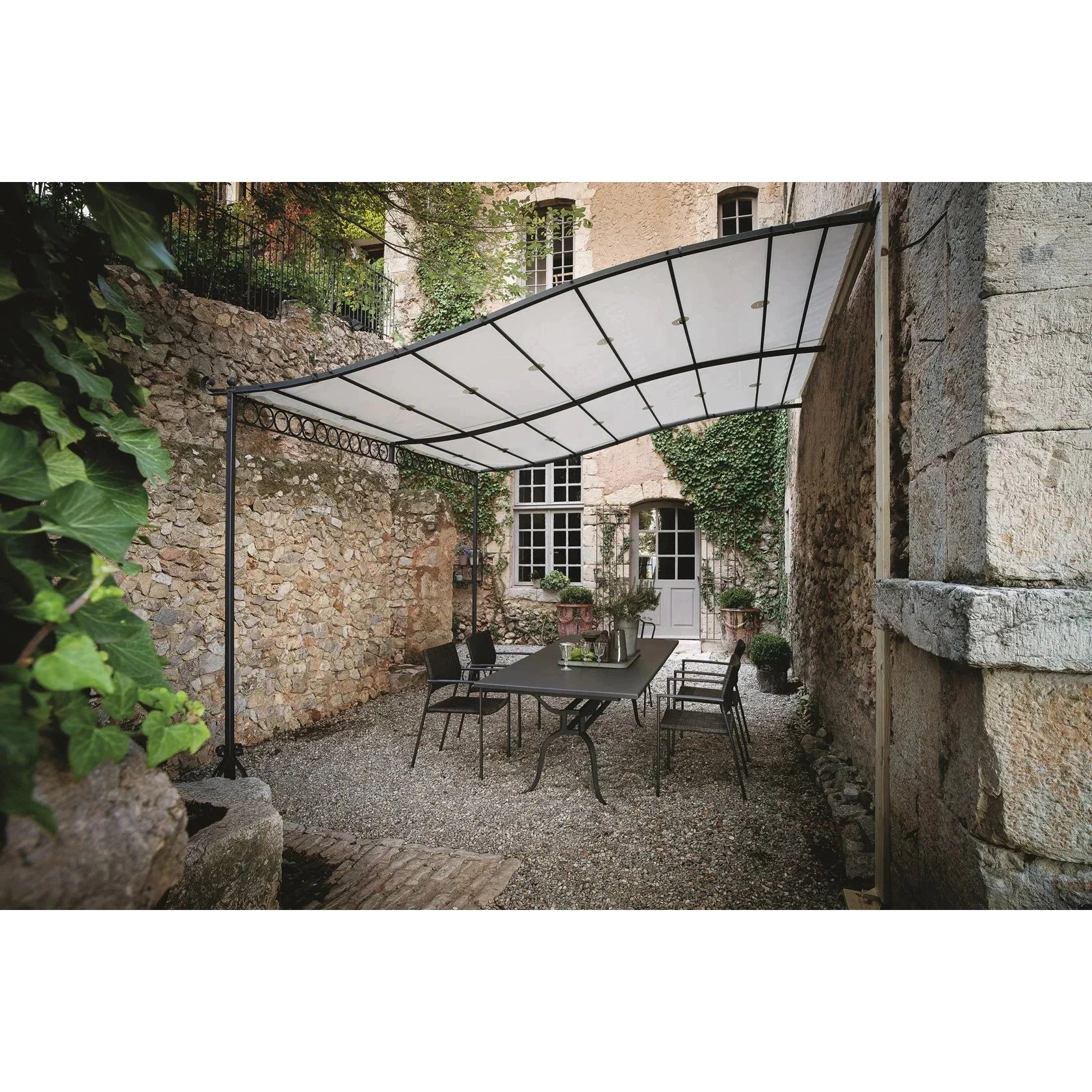

Unopiu - Extension Pergola Tibisco

Construction and Coloration:
Frame: Made of iron, galvanized and powder-coated
Coloring: Dark gray with graphite tone

Mounting Options:
Wall Mounting: Necessary mounting accessories (e.g. screws, dowels) not included
Ground Anchoring: For maximum stabilization, the manufacturer recommends pouring the supports. Depending on the substrate, support feet or decorative bases can alternatively be used

Supplementary Accessories (optional):
1. Decorative Base: For floor mounting
2. Support Feet: For alternative anchoring options
3. Decorative Arches: Made of iron, coated in graphite gray
4. Canopy Variants:
- Water-repellent Covering: 71% PVC, 29% Polyester, including fastening parts

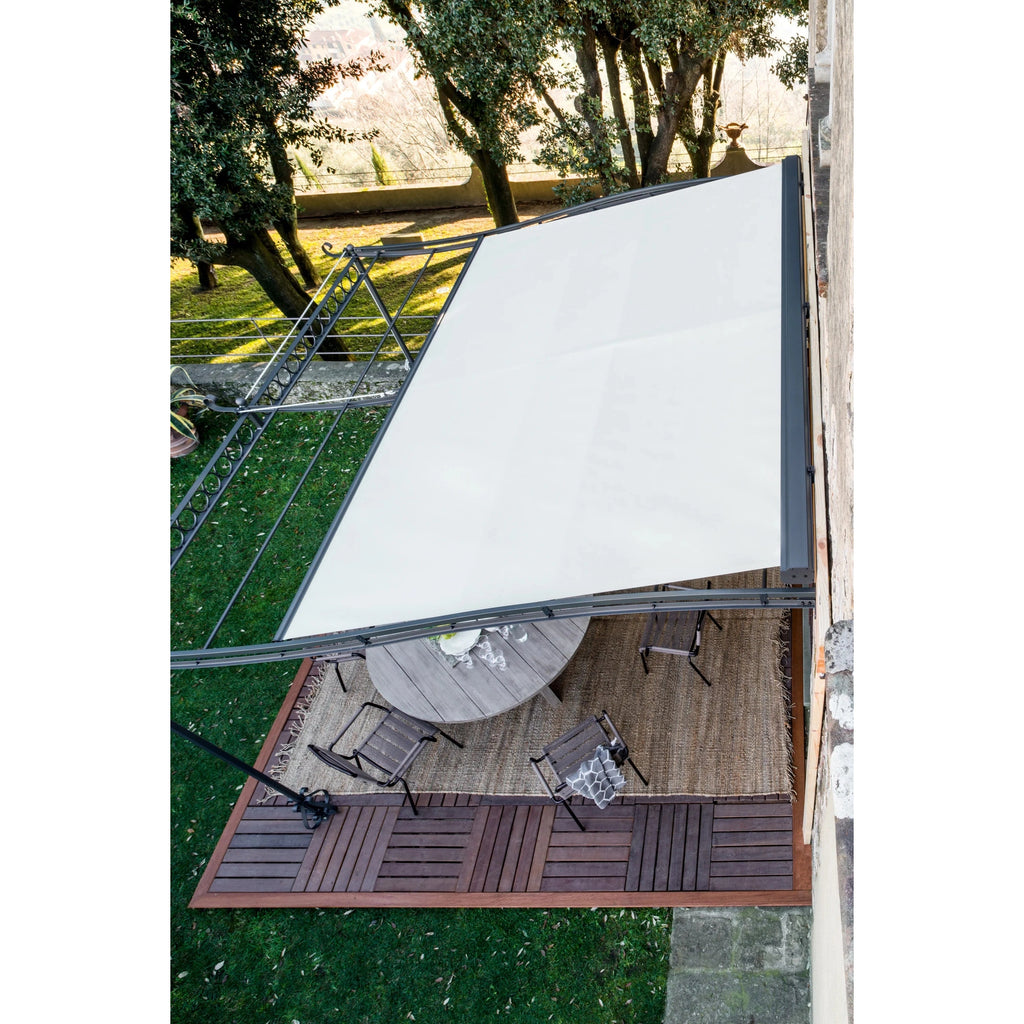

- Spring-loaded Sunshade with waterproof tarp: Set of white, waterproof covering (71% PVC, 29% Polyester), aluminum cover strip in graphite gray, spring mechanism, and guide rails
- Spring-loaded Sunshade made of awning fabric: 100% acrylic in natural color, with aluminum cover strip, spring mechanism, and guide rails
- Bamboo Tube Cover: Bamboo rods with varying cross-sections (1-2 cm), connected by stainless steel wire, mounting material included

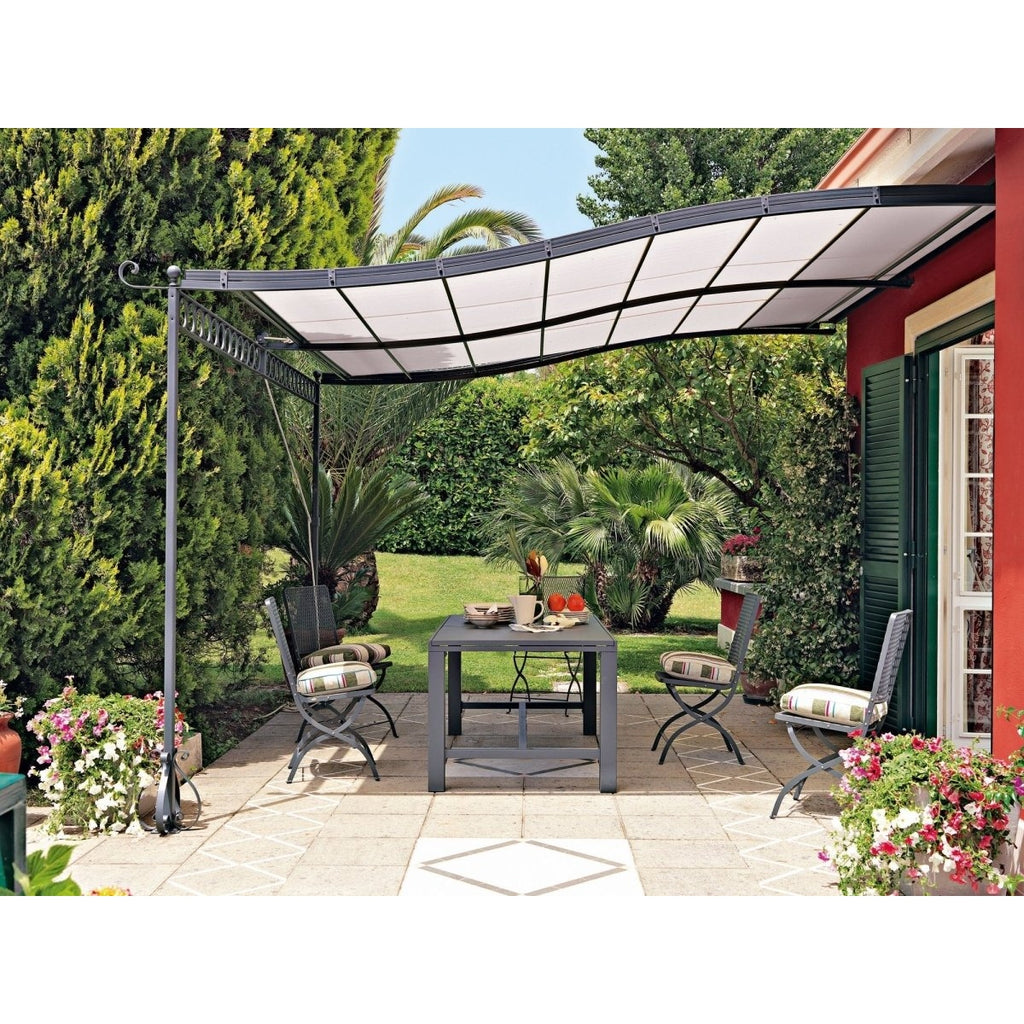

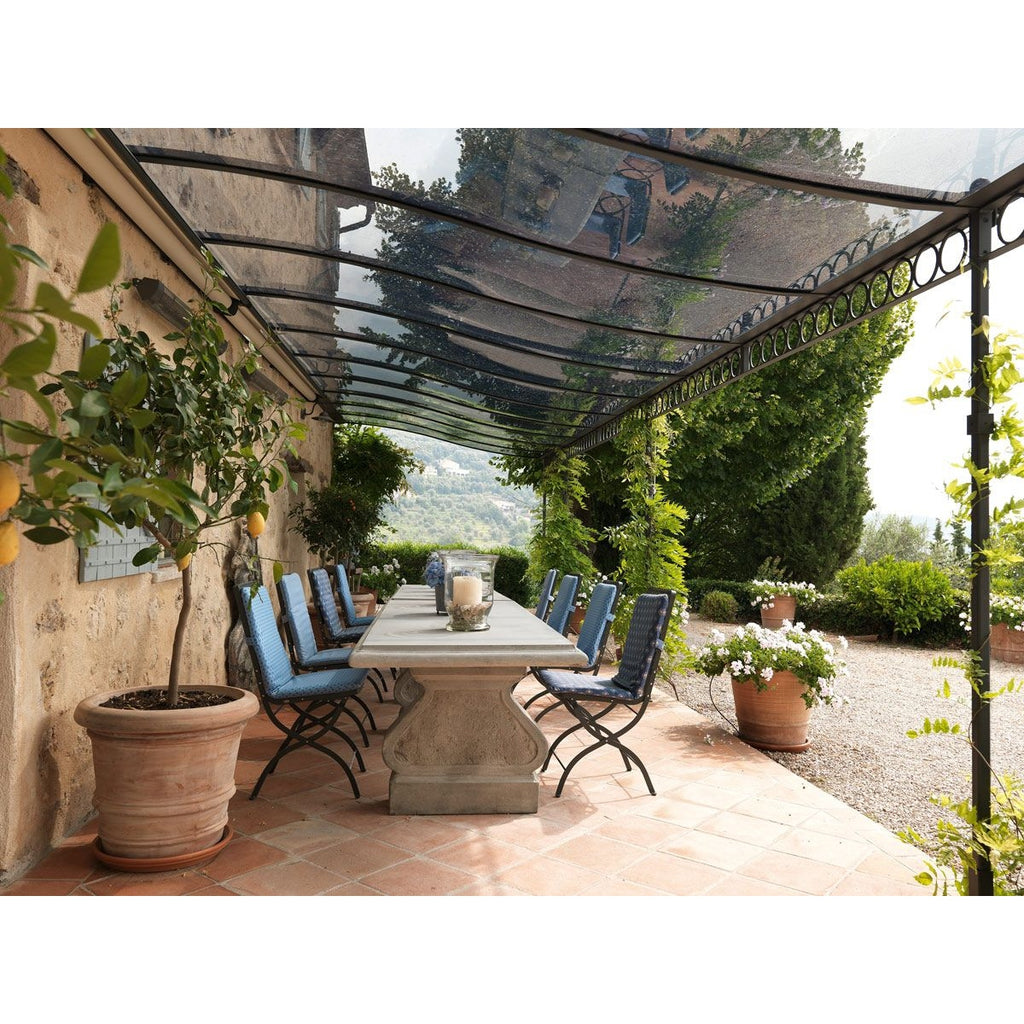

Polycarbonate Elements: For additional roofing options

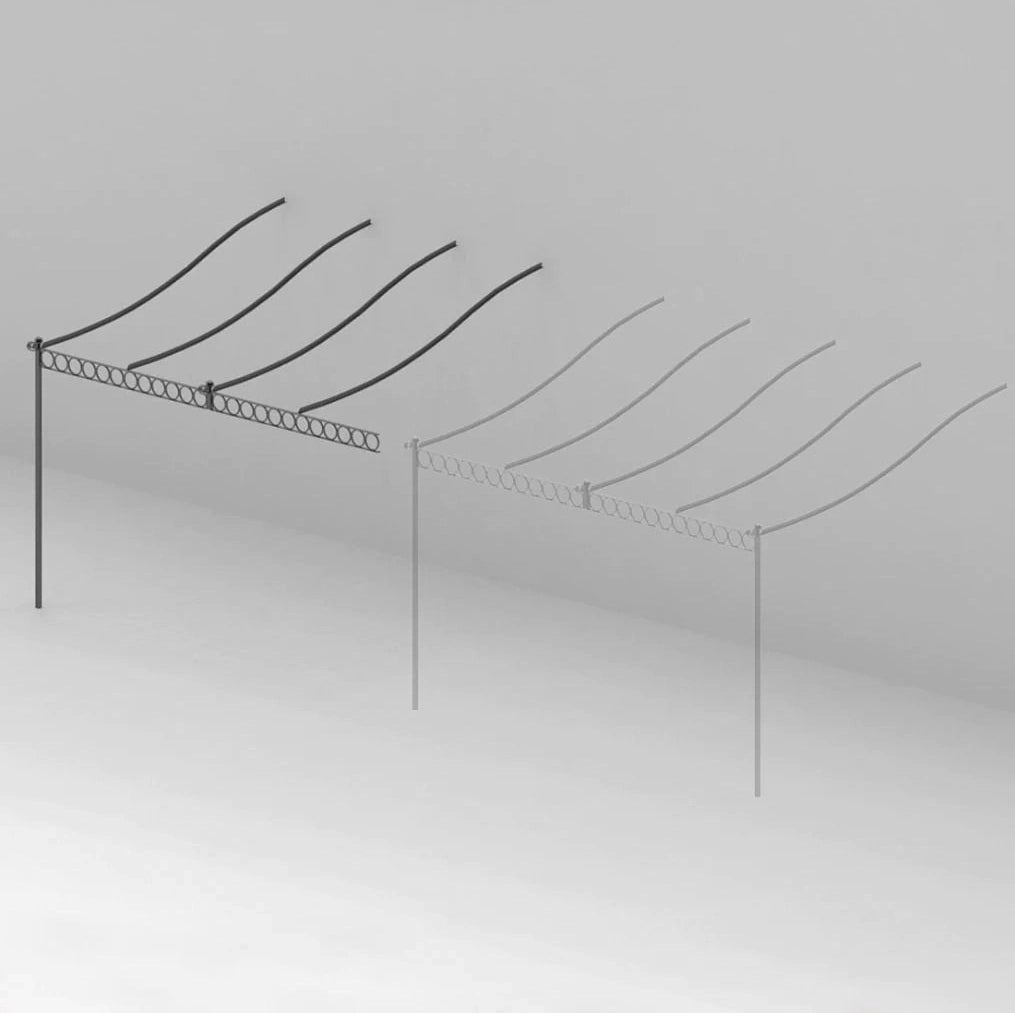

Extension Modules:

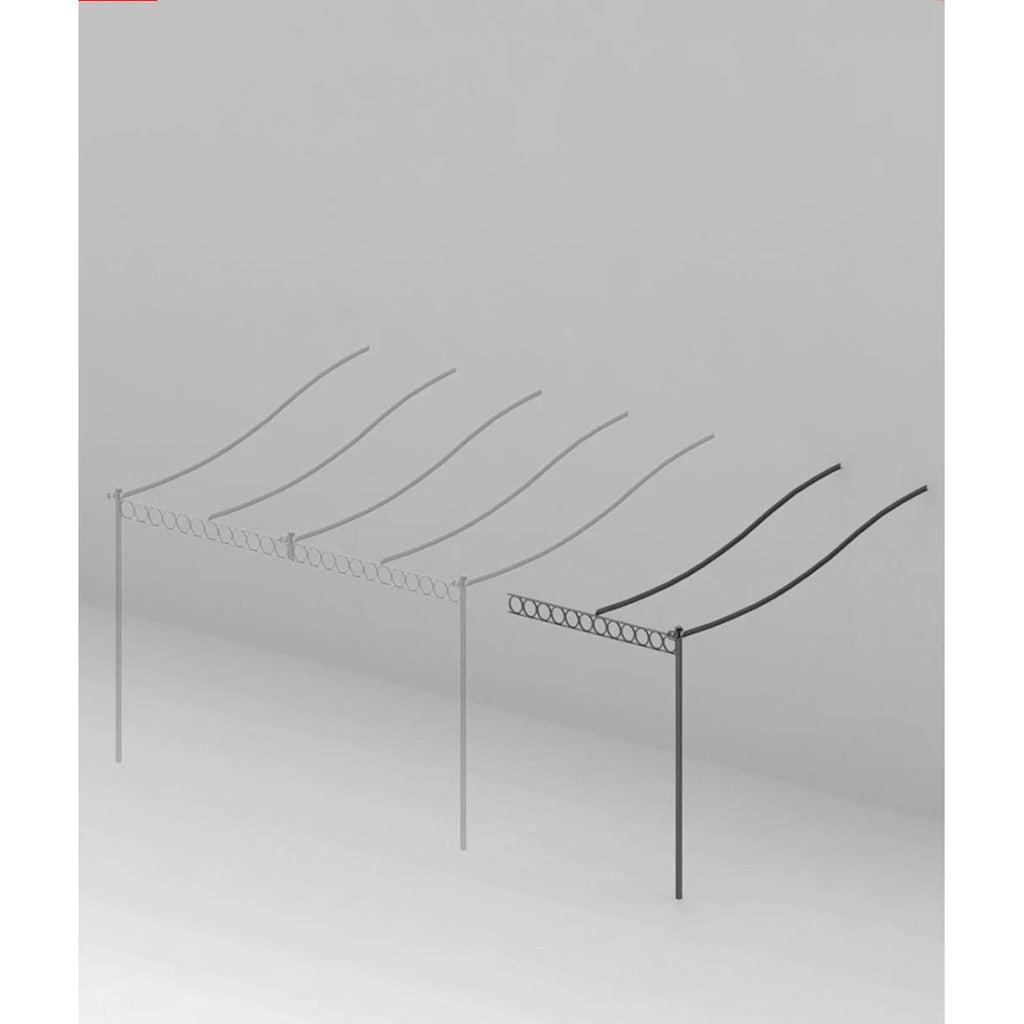

- Single Modules: 186 cm wide
- Double Modules: 372 cm wide

Special Features for Specific Widths:
- 562 cm Variant: Combination of base model (376 cm) and single extension (186 cm). Asymmetrical arrangement of the front supports due to the size difference between base and extension
- 562 cm and 748 cm Variants: Consisting of base element and extensions. Continuous water-repellent covering over the total width. When ordering the spring-loaded sunshade: delivery of two separate roller blinds (for base and extension). Possibility of a small gap between the roller blinds, which may not be completely waterproof

Note on the Spring-loaded Sunshade:
Housing height 14 cm, an additional approx. 9 cm distance from the pergola is required for adequate water drainage. In acrylic versions, this distance can be reduced as they are not waterproof.

Installation:
Professional installation required

Tibisco Basic Model:
· W 376 x D 321 x H 280 cm
· W 376 x D 369 x H 285 cm
· W 376 x D 393 x H 292 cm
Tibisco Basic Model + Single Extension:
· W 562 x D 321 x H 280 cm
· W 562 x D 369 x H 285 cm
· W 562 x D 393 x H 292 cm
Tibisco Basic Model + Double Extension:
· W 748 x D 321 x H 280 cm
· W 748 x D 369 x H 285 cm
· W 748 x D 393 x H 292 cm
Distance from Wall to Front Post
· with Pergola Depth of 321 cm: approx. 297.5 cm
· with Pergola Depth of 369 cm: approx. 345.5 cm
· with Pergola Depth of 393 cm: approx. 369.8 cm
Height at the Wall
· with Pergola Depth 321 cm: 280 cm
· with Pergola Depth 369 cm: 285 cm
· with Pergola Depth 393 cm: 290 cm
Post Dimensions Front: W 4 x D 4 cm x H 240 cm

Process of Your Order and Delivery:
1. Order: You place your order and production begins.
2. After 3–4 weeks, the freight company receives your order.
3. Delivery time: The freight company has 15 working days to deliver the products.
4. Appointment scheduling: A few days before delivery, the freight company will contact you to arrange a delivery date.
5. Assembly: You can assemble the pergola yourself or contact us for an assembly service.
